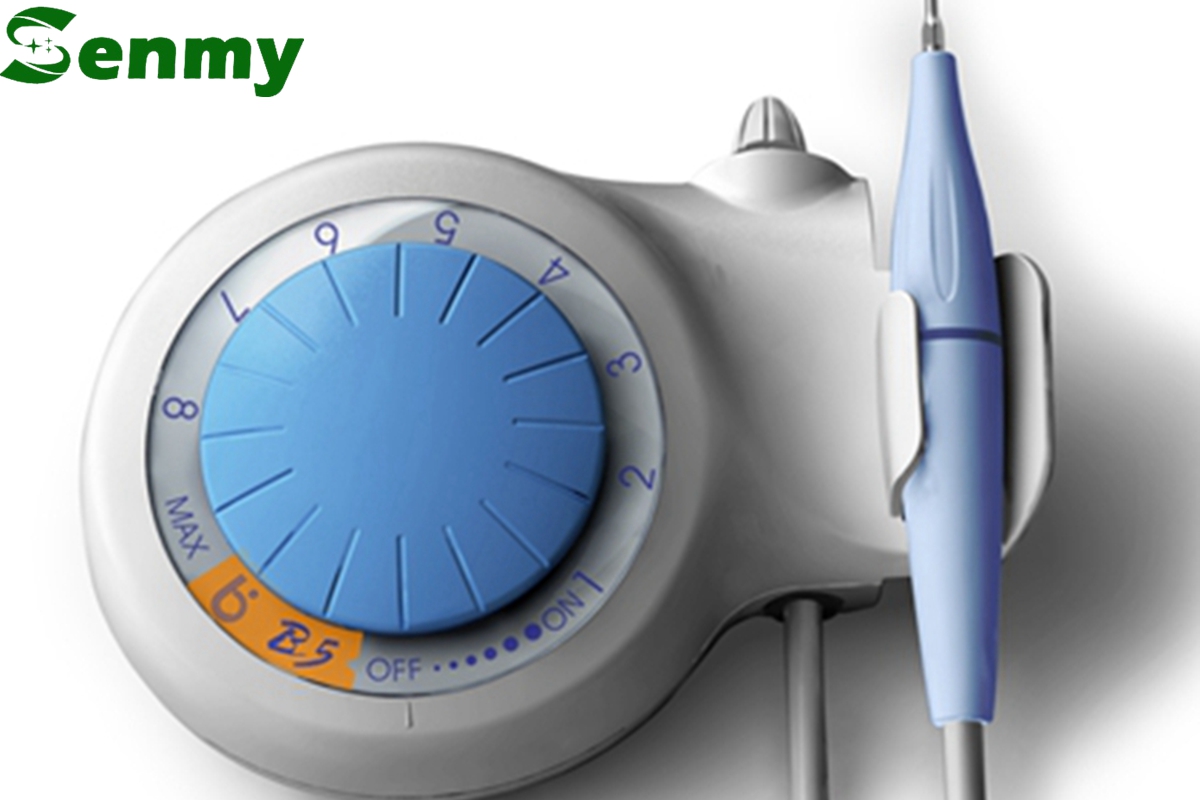

N201 B5 Ultrasonic Scaler

N201 B5 Ultrasonic Scaler

Functional Characteristics

1. The piezoelectric working way ensures that the machine always work on a steady power, high efficiency and generates little heat.

2. Digitally controlled, automatic frequency tracking ensures that the machine always work on the best frequency and more steadily.

3. The design of automatic amplitude compensation function reduces patients’ discomfort.

4. The scaling tip is made of high strength alloy material. The atomized spraying design forms the cavitations, and in conditions of water it will form oxygenated water to release the new eco-pure oxygen, which can efficiently inhibit periodontal anaerobic bacteria against periodontal diseases.

4. Ergonomic design of handpiece makes it easy for long time use.

5. Cable of the handpiece is made of imported silica gel tube, soft and durable.

6. Axis of the handpiece is made of high-quality titanium alloy, strong and durable.

7. Wide range power offers more convenience for operation.

8. Beautiful appearance, small and light, exquisite craft.

Specifications:

Adapter Input 110V-240VAC  50/60Hz  0.7A -0.4A

Main unit input 30VDC 1A

Main unit fuse 250V/T 1.6AL

Output power 3W-20W

Output primary tip vibration excursion ≤200μm

Output tip vibration frequency 28kHz 3kHz

Output half-excursion force ＜2N

Water pressure 0.1MPa-0.5Mpa(1bar-5bar)

Weight of main unit 1kg

Weight of adapter 0.34kg

Operating mode Continuous operation

Electric shock protection type Class II

Classification 93/42/EEC Class II a

Degree of protection against electric shock B

Degree of protection against harmful ingress of water Ordinary equipment (IPXO), Foot switch(IPX1)

Degree of safety of application in the presence of a Flammable Anesthetic Mixture with air or with Oxygen or Nitrous Oxide Equipment not suitable for being used in the presence of a flammable anesthetic mixture with air or with oxygen or nitrous oxide
