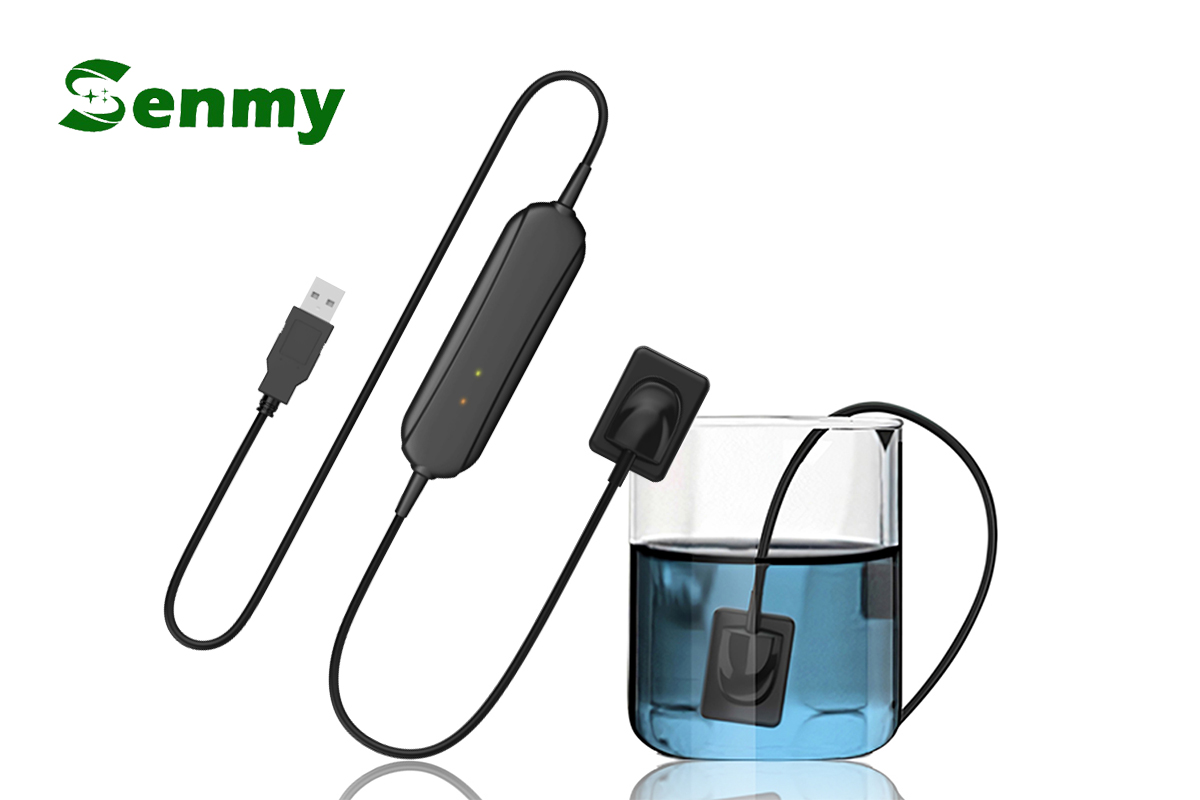

S800 Dental X-ray Sensor

S800 Dental X-ray Sensor

Feature:

1.Multi-languages with 10 types.
2.Operation system: desk top & laptop (Win XP, Win 7, Win 10)
3.Twain driver: our RVG compatible with KODAK, SIRONA, SCHICK, etc.
4.Power :USB 2.0 interface
5.Excellent quality: our sensor material imported from Germany and Japan , best quality standards.
6.New APS CMOS sensor with long life time (400,000 times).
7.Warranty for 1year

S800 Dental X-ray Sensor

Packing list :

1. Manual 1pcs
2. CD 1pcs
3. X-Ray Sensor and Control Box 1pcs
4. Holder 1pcs
5. Sleeves 1 bag

Packing information:

GW:2.0kgs/set;
Carton size:47*38*14cm

Technical Specifications :

Sensor: APS CMOS sensor
External dimension (mm) : 40×26
Sensor Active Area : 30×22.5
Sensor Thickness : 6mm
Dynamic Range : 0~4,096
Power : 5V±0.5V
Image Transfer :USB2.0
Cable Length :.≥ 3m

Operating conditions :

Environment Temperature : +10℃~+40℃
Environment relative humidity : ≤95%;
Air pressure : 860hPa~1060hPa;
Transport and Storage conditions:
Environment Temperature: -25℃~+60℃;
Environment relative humidity : 10%~93%;
Air pressure : 860hPa~1060hPa;
