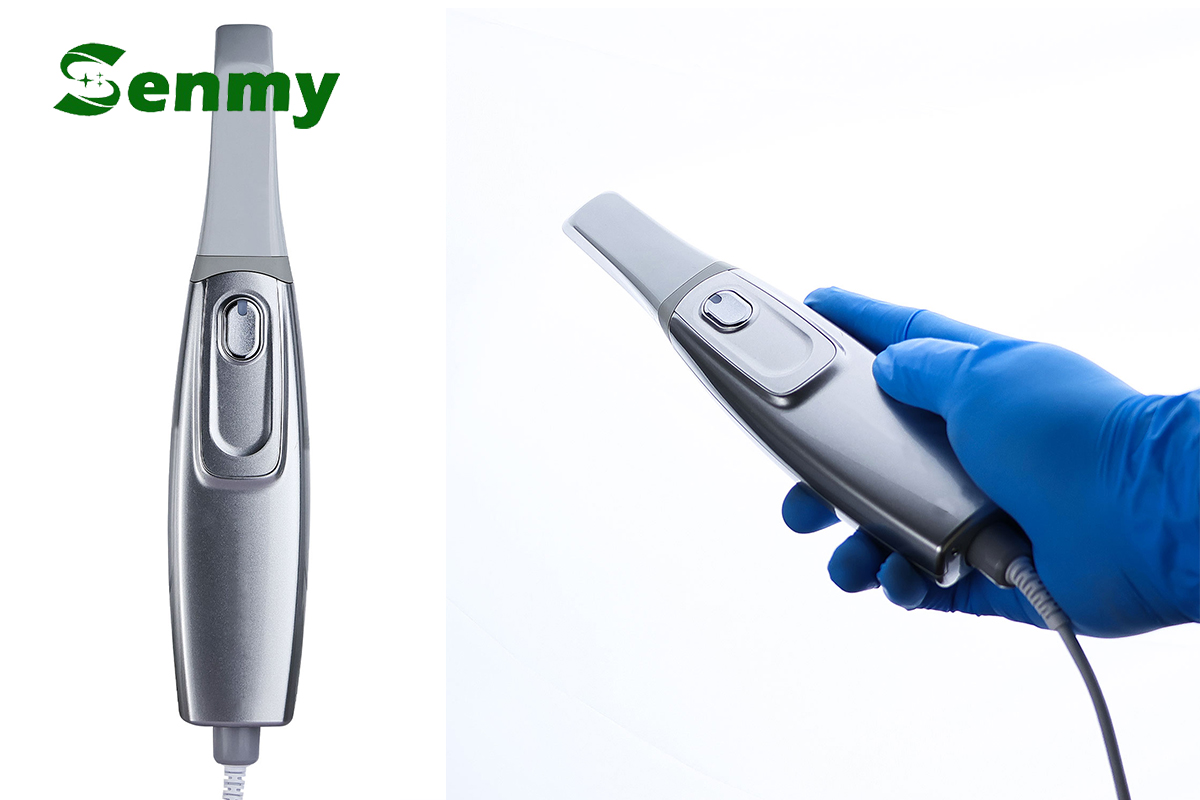

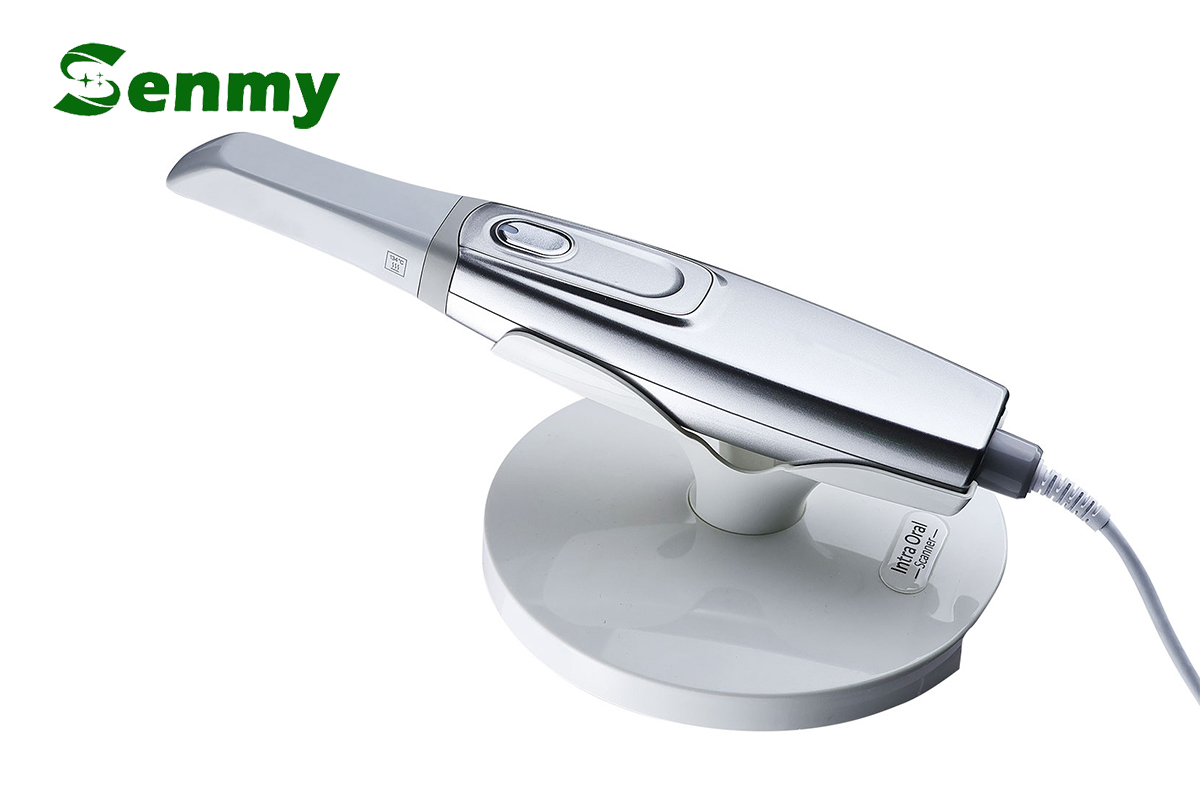

M501 3DS Plus Scanner

Technical principle

3D Structured light

Main unit weight

480g

Main unit size

306x48.5x57.5mm

Scan tip section size

20x18mm, Internal heating

Scan tip sterilization

Support high-pressure steam sterilization, about 100 times

Precision

20um

Accuracy

20um

Scan speed

Full arch 60s

Field depth

0~15mm

Frame rate

10~15 frames/sec

Scan range

16x14mm

Remote control

Yes

Light source

LED

Camera sensor

High rate CMOS

Interface

USB 3.0

Wire length

2m

Power supply

DC12V 2A

Al Scan

Yes

Intraoral camera

Yes

Output format

STL, PLY

PC configuration requirements

Processor(CPU): 8^th generation Intel i5(4 cores 8 threads) and above

Memory: 16GB and above

Hard Disk: 512G and above

Graphics card(GPU): NVIDIA GTX 1060 6GB DDR3 and above

Operating system: Windows 10(64-bit) or higher

Display: 1920x1080, 60Hz and above

Interface: at least 1 type A USB 3.0 port

Gross weight

480g

Package size

306x48x57mm
